Impact Cold Spray System 5/11

Cold gas spraying offers special advantages because the spraying material is neither fused nor melted during the process.

Performance

CheckMaximum operating temperature: 1100°C (2012° F)

CheckMaximum operating pressure: 50 bar (725 psi)

CheckHeating power: 40 kW



Description

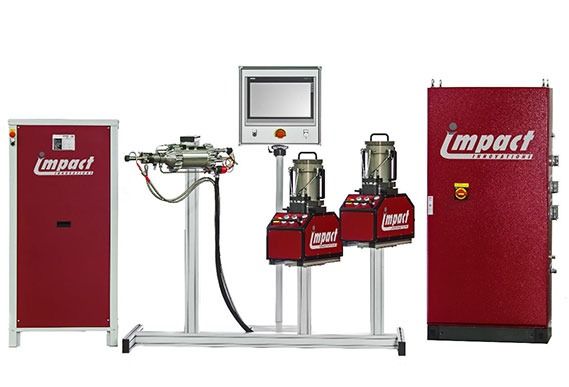

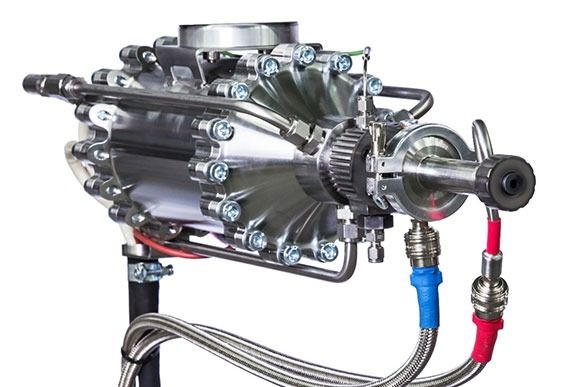

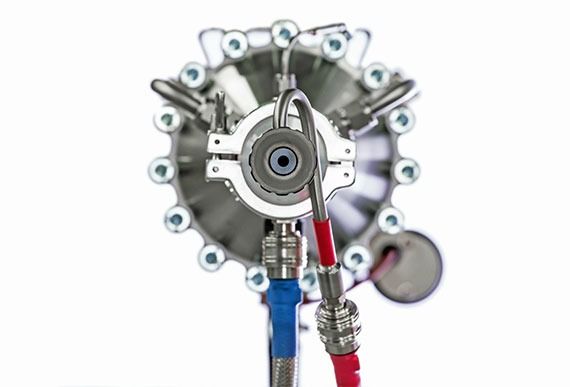

Impact Innovations 5/8 & 5/11 Cold Gas Spray System provides performance pressures up to 50 bar (725 psi) at temperatures up to 800°C and 1100°C (2012°F). The compact gun design offers high performance and low maintenance. The system's cold gas gun features an innovative, modular heating concept that allows for custom configurations. The spray gun provides a high heating rate without external pre-heating (no hot gas tube) and features a proprietary powder injection system for exceptional performance. The 19" touch screen with a user-friendly interface and easy recipe management, the 5/8 & 5/11 cold gas spray system enables expert level calibration and parameterization. Standard features include automatic data logging of all system variables and values, and changelogs and production data. This cold spray equipment can be integrated as part of a turn-key solution or as complete stand-alone. Multiple powder feed units can be incorporated. The power feeder provides feed rates up to 1.8 dm3/h and includes easy handling for fast, efficient powder material changes.



Optional

CheckConnection of several powder feeder units

CheckNetwork connection for the recording of process data and the recipe management at a central storage location

CheckModular design allows upgrades, customer-specific modifications and solutions
