MP-50 digital series multi-process system

The MP-50 is a stand-alone multi-process, mass flow controlled (MFC) HVOF, APS and combustion spray, coating system. Built using only state-of-the-art components and technologies, the MP-50 is designed to be both reliable and functional and can be used in every type of thermal spray applications ranging from R&D, single-piece production to high volume production.

Read about Plasma process Read about HVOF process

Description
Spray gun
Auxiliary equipment
Software
Downloads
References

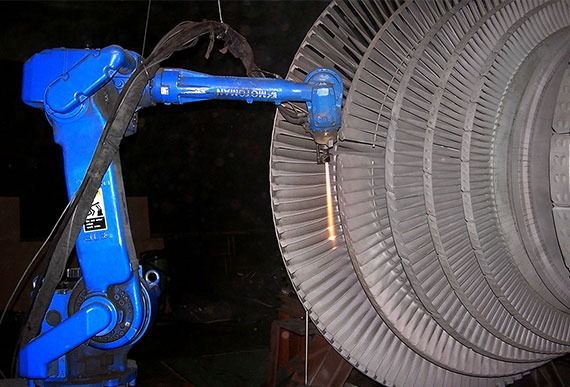

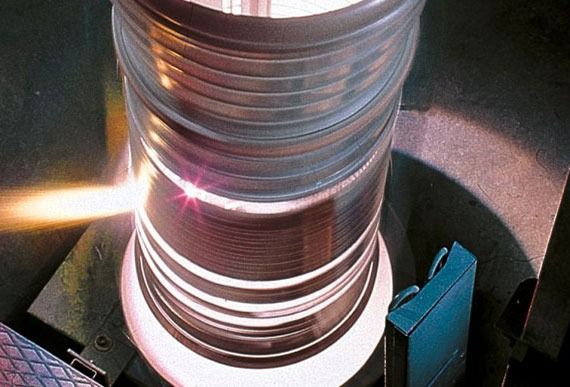

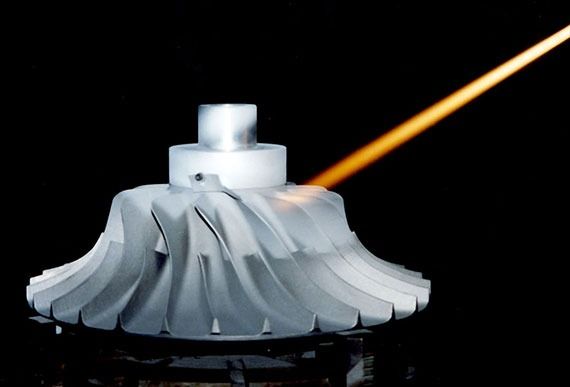

MP-50 Digital Series

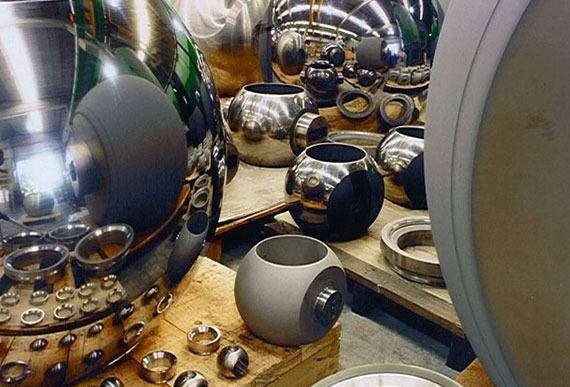

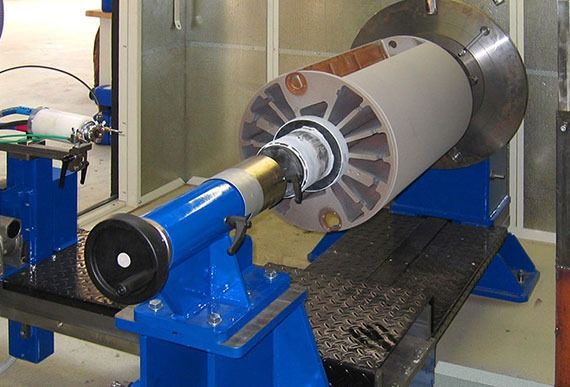

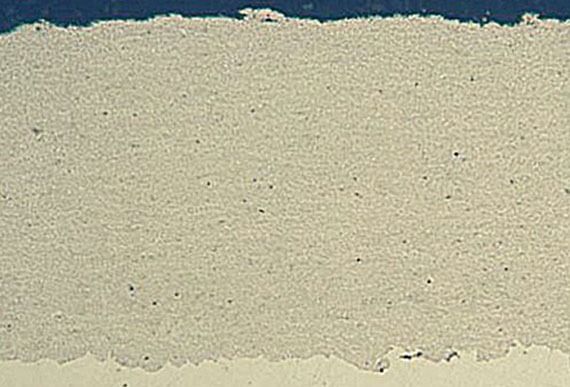

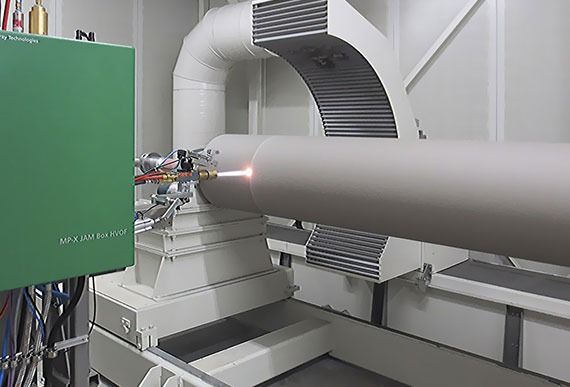

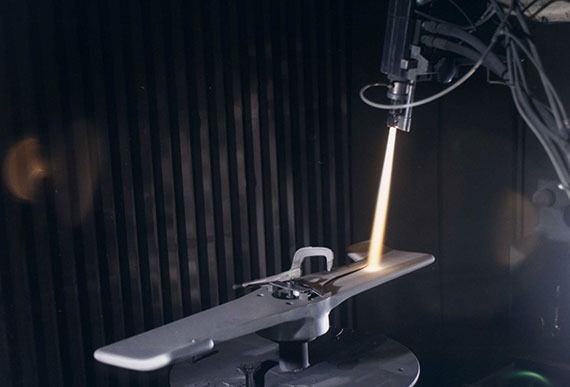

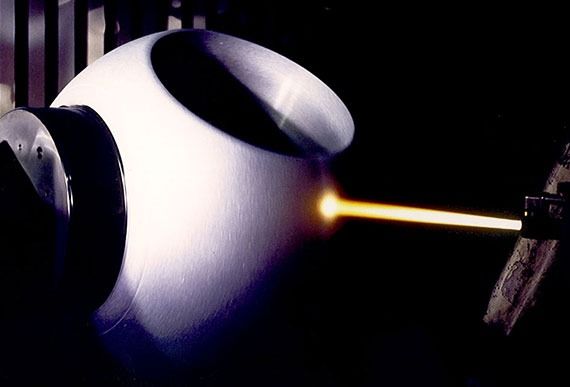

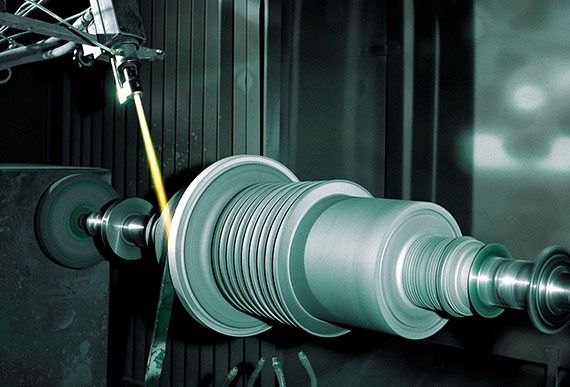

The MP-50 Digital Series represents the latest generation Multi-Process Thermal Spray System and is based on the successful HV-50 (HVOF) and AP-50 (Plasma) models. The MP-50 offers unsurpassed process control and thermal spray operation flexibility and is one of the most reliable coatings systems available on the market today.

The MP-50 Digital Series is developed to meet the increasing customer demands for process control, system flexibility, safety features and the unnecessary duplication of system peripherals while simultaneously offering truly outstanding value.

The MP-50 Digital Series is built to the highest technology standards to ensure optimum system performance and, therefore, maximum coating quality and reproducibility. The MP-50 is capable of controlling plasma, HVOF and combustion spray processes such as flame wire and flame powder.

The MP-50 Digital Series is built to meet the highest safety standards. Besides several self-diagnostics functions and safety sensors that are implemented in the system, additional safety features for all system subcomponents can be installed and interlocked with the control unit.

MP-50 Digital Series spray guns:

Check eGun™

Check JP-5000

Check DJ2600

Check DJ2700

Check JetKote3000

Check cGun™

Check Sinplex

Check F4

Check F4XL

Check F4HBS

Check F1

Check SG-100

Check SG-100/2700 & 2086

Check 9MB

Check 3MB

Check 3MB-T ID

Check 6P-II

Check Integration of other spray guns on request

MP-50 Digital Series main features:

Runs on Horizon software:
- FST | Horizon™ operating software
- FST | Horizon™ data reporting on PC
- FST | Horizon™ information centre on PC
- FST | Horizon™ turn-key maintenance scheduler
System components connected to a single network with digital communication:
Simatic s7-1500 PLC The process controller is PLC based providing maximum reliability
- No external influence of the signal: Data transfer is based on a 24V signal. Screened cables and required grounding are no longer necessary.
- No measured value losses: The entire measured value transmission is digital. Transmission that is prone to errors and calculation of analogue signals is replaced.
- Easy component replacement: all sensor parameters are stored in the master and transferred to the replaced unit.
- Identification: only like for like replacement. No wrong sensors accepted.
- Wire break detection/diagnosis: wire break or short-circuit is immediately detected.
Master/slave integration via profinet
Modular construction enables future expansion of a single-process system to multi-process
High Definition 22” Touch Screen HMI provides clear and user-friendly access to process control parameters and monitoring functions
Closed-loop mass flow controllers for all process gases including carrier gas and ES-flow controllers for all liquid fuels.
Remote diagnostics minimizing the system failure analyzing efforts, through the use of eWon technology.
The MP-50 controls all system peripheral or auxiliary components, such as heat exchangers, dust collectors.
All process-related parameters are closed-loop for maximum coating consistency
Multiple gun technology; can handle most plasma and HVOF spray guns
Master control integration and operation of FST powder feeders
Fully compliant with all relevant CE and UL directives

MP-50 Digital Series system configurations:

Turn-key solutions

Thermal spray guns for HVOF&APS Spray

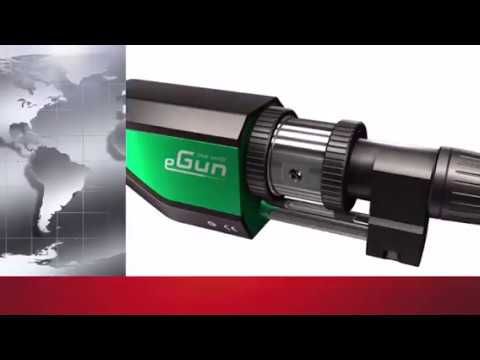

eGun^TM HVOF spray gun

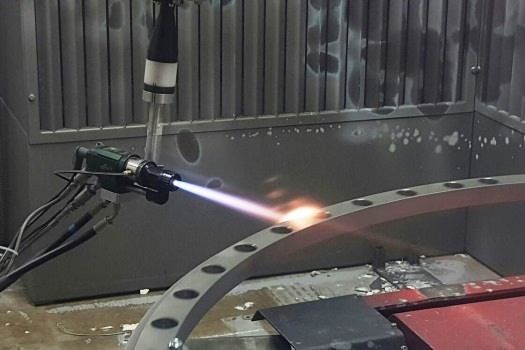

The eGun™ is a liquid fuel HVOF torch that utilizes ethanol as its fuel. The eGun™ is capable of operating at combustion chamber pressures up to 13 bar.

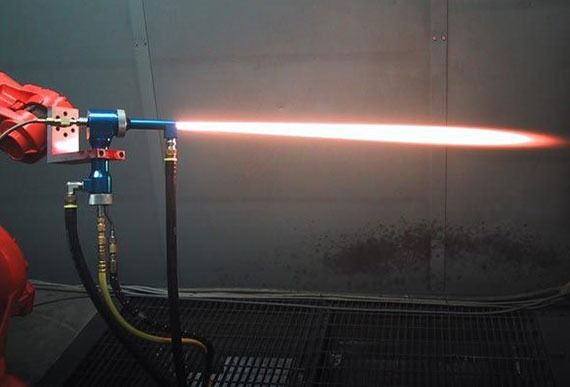

JP-5000 HVOF spray gun

The JP-5000 HVOF gun is designed for the liquid-fuel HVOF spray process and can be considered as the benchmark for HVOF guns.

9MB Plasma Spray Gun

9MB plasma spray guns are well-known by the thermal spray industry for their reliability and are one of the most used plasma spray guns worldwide.

3MB Plasma Spray Gun

3MB plasma spray guns are well-known by the thermal spray industry for their reliability and are one of the most used plasma spray guns worldwide.

F4 Plasma Spray Gun

The F4 is a machine-mounted, multi-purpose air plasma spray gun used for external coating applications. The gun is capable of operating at power levels up to 55 kW.

F1 ID-Plasma Spray Gun

The F1 plasma gun has been around for some time and is known for its reliability and good coating quality for the application of coatings in internal surfaces of 75 mm (3") diameters or greater.

SG-100 Plasma Spray Gun

The SG-100 Plasma Spray Gun is a high power (80 kW) multi-purpose plasma spray gun.

2700 & 2086 ID-Plasma Extension Spray Gun

The Model 2700 & 2086 plasma extension guns are versatile production guns designed for internal diameter coating applications.

Horizon Software

FST Horizon™ professional Thermal Spray Software – operates multiple thermal spray processes in one modular software platform. Increase your production output by using FST’s reliable, versatile, unmatched process control delivered by FST’s 50 Digital Series systems.

Check FST | Horizon™ operation software

Check FST | Horizon™ data reporting

Check FST | Horizon™ maintenance scheduler

Check FST | Horizon™ information center
